Advanced Wi-Fi : MAC ON THE FLY Architecture

Smart WiFi packet transport, with advanced MAC ON THE FLY architecture, that maintains Wi-Fi throughput even with high client usage.

  • The T5 effectively handles small packet traffic more effectively, making the overall experience faster than with other company routers.

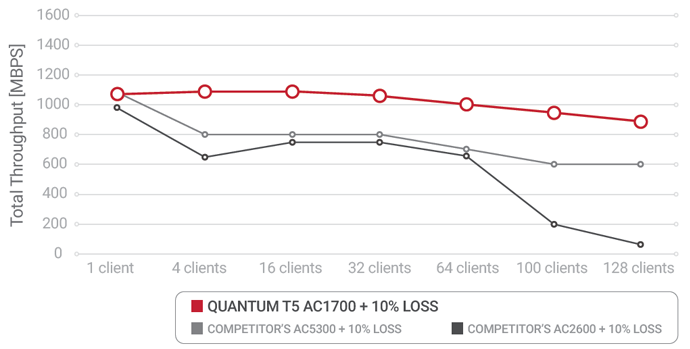

128 Clients Support: Even when multiple wireless devices are connected, Wi-Fi speeds will remain stable when connected to the T5 with minimal drops in speed than when connected to other company routers.

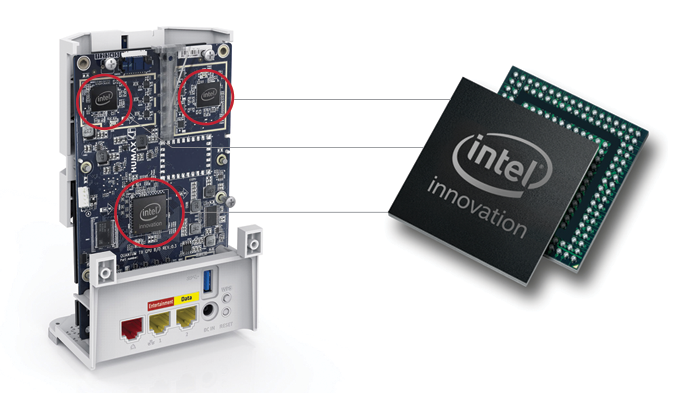

Dual-Core & HEXA CPU

Multiple hardware accelerators ensure ultimate performance to download movies, play games, and stream 4k content. This also helps the T5’s network to handle the demand from multiple users downloading, playing, and streaming simultaneously.

Ultimate USB3.0 speed
and versatility

High-performance storage software
improves data transfer speeds for USB3.0
by supporting multi-file system.
Add external storage and other devices
to share content across your network via USB ports.

More Streaming for Everyone with MU-MIMO Technology

The T5 does more than just create faster Wi-Fi, it helps your devices achieve optimal performance by making communication more efficient. With MU-MIMO technology, the T5 can provide four simultaneous data streams, allowing all connected devices to achieve speeds up to 4X faster than standard AC routers.

AnyClient Beamforming

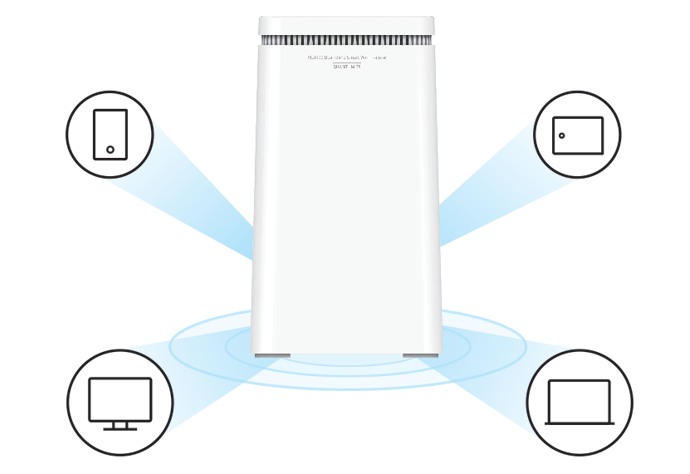

AnyClient Beamforming ensures maximum Wi-Fi coverage to each connected client, with support for legacy products. Stream HD video, surf the web, skype your friends and play online games and more, without having to worry about dropped signals.

Entertainment Port for easy user experience

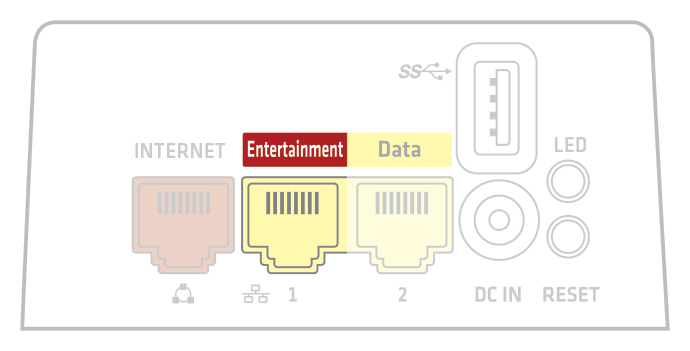

The Entertainment Port is optimized for super-smooth and uninterrupted streaming and gaming experience.

TECH SPECS

Specification

Product Category AC1700 Dual Band Smart Wi-Fi Router
Wi-Fi Technology IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Wi-Fi Performance 400Mbps at 2.4GHz, 1300Mbps at 5GHz
Wi-Fi Band Simultaneous dual band 2.4 & 5GHz
Antennas Internal 2.4GHz 2T2R / 5G 3T3R
Advanced Wi-Fi Technology 1) CPU Offload, 2) Flexible packet transmission, 3) Multi client performance.
MU-MIMO Yes
Beamforming AnyClient Beamforming - Ensure maximum Wi-Fi coverage to all of the 128 clients connected.
Number of Ethernet Ports Three (3) 10/100/1000 (1 WAN and 2 LAN) Gigabit Ethernet ports
Number of USB Ports One (1) USB 3.0 port - Ultimate USB3.0 Speed powered by Tuxera
Key Features • AC1700 Wi-Fi (400+1300 Mbps) speeds
• Dual core Hexa CPU with hardware accelerator for ultimate performance when downloading movies, playing games, and streaming 4K content.
• MU-MIMO - Multiple devices to get high-bandwidth Wi-Fi signal at the same time.
• AnyClient Beamforming - Ensure maximum Wi-Fi coverage to all of the 128 clients connected.
• Intelligent QoS - Prioritize and customize any device and/or contents.
• Enhanced Parental Controls to select devices to manage contents(Website/Application level) and schedule settings.
• Entertainment Port - Works as its optimal level to give you a super-smooth, uninterrupted streaming and gaming experience.
• Efficient antenna layout design minimizes signal interference and maximizes wireless performance.
• One (1) USB 3.0 port for high speed network data transfers between the router and any USB drive, powered by Tuxera
• Built-in Print Server – Supports wireless printing from multiple computers.
• Built-in Media Server – Allows users to play music, video and view photos.
• Three (3) Gigabit Ethernet ports - Speeds can be up to 10 times faster than Fast Ethernet.
• HUMAX Wi-Fi® App - Allows easy network management at your fingertips.
• VPN Server & Client - Secures remote access for privacy.
• Easy Web UI - Ensures a quick installation, making your network setup out of hassle.
• Easy Setup - Assistant with multi-language support provides quick & hassle-free installation.
• Guest network Access - Provides separate Wi-Fi network for your guest.
• IPv6 support ready (Internet Protocol Version 6)
• WPS
Security • Secure Wi-Fi Encryption - WPA-PSK, WPA2-PSK, WEP(64/128bit)
• Guest network Access - Provides separate Wi-Fi network for your guest.
• Double firewall protection (SPI and NAT)
• Parental Controls to manage web filtering & accessibility by service or devices.
• Firewall protection - MAC/IP/Port/URL Filtering, Port forwarding, DMZ and more.
Processor 1.6GHz dual-core
Memory 256MB flash and 512MB RAM
Physical Specifications • Dimensions (WxDxH): 4.1x4.1x7.3 in. (105x105x185 mm)
• Weight: 1.84lb (835g)
Package Contents • T5 AC1700
• Power Adapter
• Ethernet Cable
• Quick Start Guide
System Requirements Microsoft® Windows 7, 8, 8.1, 10, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux®
Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher

Software

User Manuals

FAQ

1. About Your Product
2. Setup & Installation
4. Wireless Connectivity
5. Adding Devices
6. Advanced Configuration
View All
1. HUMAX Router User Manual
Download the HUMAX Router User Manual by clicking on the link below.

>> User Manual
2. What is the ‘HUMAX Wi-Fi’ App?
Download the free ‘HUMAX Wi-Fi’ mobile app to easily connect to your router, check on your internet connection status, configure the network connection (SSID) and password, set the parental controls, and more.

Note: The HUMAX Wi-Fi app supports the following models: QUANTUM T9, T7, T5, T9x, T7x, T5x
Click on the links below for more information.

>> HUMAX Mobile App Description Page

Downloading the App
>> App Store (iOS devices)
>> Google Play (Android devices)
3. LED Status Lights
Verify the status of the router by four (4) LED lights located at the corners of the router.

T9_led

T9_off
There is no power to the router. Notify the Call Center if the lights remain off even after being connected to the adapter.

T9_white
The router is working properly.

T9_orange
The router is not connected to the internet. Check that the internet connection cable is properly connected to the router. If the lights remain on, please check with your internet service provider (ISP).

T9_red
The router is not upright. Upright the router, as it may overheat.
4. Updating the Firmware
Use the following links to download the firmware updates.

QUANTUM T9 / T7 / T5:
QUANTUM T9x / T7x / T5x:

Click on the links below to verify the firmware version and how to update the firmware.
>> Verifying the router firmware version (Go to the question 45.)
>> Updating the firmware (Go to the question 46.)
5. Setting Up Your Router
Follow the steps to setup up your router.

Step1.
Connect the router to the ISP modem using the included LAN cable. Connect the LAN cable to the red internet port (WAN).

Step2.
Plug into the router. Connect the included power adapter to the DC-IN port on the router.
T9_setup_step2

Step3.
Now you can connect your preferred device to the internet by a wired (LAN cable) or wireless (Wi-Fi) connection.

Wired
Connect to the router by connecting a LAN cable from the yellow LAN port to the device.

Wireless
Connect the device by searching for and connecting to the proper network ID (SSID). Initial settings are found on the router label.
T9_setup_wireless1
T9_setup_wireless2
6. Setup Wizard Instructions
Begin the simple setup Wizard by connecting to the HUMAX Web UI.
Connect to the HUMAX Web UI (http://dearmyrouter.net) and take the following steps:

Step 1. Welcome Page
Use the welcome page to configure language and time zone settings. If choose to skip the easy setup, click on ‘Skip’ button on the bottom left.
setup_wizard_step1

Step2. Internet Connection Configuration
Depending on the network condition, the connection settings will be automatically adjusted. If the connection setting to be manual, input the proper information after selecting manual connection.
setup_wizard_step2_1
setup_wizard_step2_2
setup_wizard_step2_3

Step3. Wireless Configuration
May select the country, network name (SSID), and passwords for each channel. Please check the router label for the default network names and passwords.
setup_wizard_step3

Step4. Password Reset
May change the password to the router. We recommend changing the default password found on the router.
setup_wizard_step4

Step5. Summary
Verify the router settings. Click on ‘Let’s Go’ to complete the setup and save the settings.
setup_wizard_step5

If you skip the easy setup when first connecting to the HUMAX Web UI, go to Settings->Wizard to begin the setup process.
setup_wizard_step6
7. Mobile App Download
[For Android] Note: The process may be different for your preferred Android version.
Step 1.
Open the Play Store app on your device.

Step2.
Search for the HUMAX Wi-Fi app.

Step3.
Install the app first. Open the app after installation.

[For iOS] Note: The process may be different for your preferred iOS version.
Step 1.
Open the App Store app on your device.
mobileapp_ios_step1

Step2.
Search for the HUMAX Wi-Fi app and ‘Get.’
mobileapp_ios_step2

Step3.
Open the app after installation.
mobileapp_ios_step3
8. Connecting to the Web UI
Begin easy configuration of the HUMAX router by connecting to the HUMAX Web UI (http://dearmyrouter.net) through your local network.

Step1.
Open your browser with a device that is connected either wirelessly or by a LAN cable to your router.

Step2.
Type http://dearmyrouter.net in the address window of your browser and press ‘Enter.’
T9_connectingtothewebui_step2_1

Note: The default address is 192.168.1.1. If you changed the address of the router, please use the new address.
T9_connectingtothewebui_step2_2

Step3.
At the “Welcome Page,” enter your login ID and password to login and configure the router.
T9_connectingtothewebui_step3

Note: The default login ID is ‘admin’ and the password can be found on your router’s label.
T9_connectingtothewebui_step3_2

Step4.
After login, may configure the router in Web Ui pages as depicted below.
T9_connectingtothewebui_step4
10. Configuring the Network ID (SSID) and Password Settings
Configuring the Network ID (SSID) and Password Settings
There are 3 ways to configure the network ID and password.

1. Click the following link to see how to use the Wizard.
>> Setup Wizard Instructions (Go to the question 6.)

2. Go to Wireless >Primary Network to configure the network ID (SSID) and password for each channel.
T9_ConfiguringtheNetworkID_2

3. Use the ‘HUMAX Wi-Fi’ mobile app and go to ‘Wireless’ menu configure the network ID (SSID) and password for each channel.
T9_ConfiguringtheNetworkID_3
11. Configuring Network Settings
There are 2 ways to configure the network.

1. Click the following link to see how to use the Wizard.
>> Setup Wizard Instructions (Go to the question 6.)

2. Go to Internet > Network to configure the network settings.
T9_ConfiguringNetworkSettings_2
Input your ISP information for static IP and PPoE connections.
T9_ConfiguringNetworkSettings_2_1

T9_ConfiguringNetworkSettings_2_2
16. Configuring for the Best Channel
The HUMAX router has an automatic channel select feature that finds and selects the best channel.

Note: The default settings of the router are set to select (Enable) the optimum channel.

The automatic channel select feature enables HUMAX router to search and check the available channels nearby and select the best channel after evaluating each channel.

Step 1
Use your PC or smartphone to connect to the HUMAX WEB UI by opening your browser and typing http://dearmyrouter.net or http://192.168.1 in the address window of your browser.

Step2
Click on the ‘Wireless’ button in the ‘Advanced’ menu.
(The menu may be different according to the router model.)

T9_WirelessConnectivity_step2

Step 3
Select ‘Auto’ for the 2.4GHz channel.
Note: Configuring the 5GHz channel is similar to configuring the 2.4GHz channel.
T9_WirelessConnectivity_step3
17. Connecting to Wi-Fi
The HUMAX router can be connected with devices with various operating systems.

Connecting Wi-Fi in Windows 10
Note: The process may be different for your preferred Windows version.

Step 1
Click on the Wi-Fi icon found at the lower right corner of the screen.
T9_connectingtowifi_step1

Step 2
Click on the Wi-Fi icon to be connected, select the SSID, and click ‘Connect.’
T9_connectingtowifi_step2_1   T9_connectingtowifi_step2_2

Step 3
Type the Wi-Fi password and click ‘Next.’
T9_connectingtowifi_step3_1   T9_connectingtowifi_step3_2

Connecting Wi-Fi in Sierra MacOS
Note: The process may be different for your preferred MacOS version.

Step 1
Click on the Wi-Fi icon found at the top of the screen and click on the selected SSID.
T9_connectingtowifi_2_step1

Step 2
Type the Wi-Fi password and click ‘Join.’
T9_connectingtowifi_2_step2

The Wi-Fi icon below will appear after connected.
T9_connectingtowifi_2_step2_1

Connecting Wi-Fi in iOS 11
Note: The process may be different for your preferred iOS version.

Step 1
Open ‘Settings’ and then open ‘Wi-Fi,’ and enable Wi-Fi.
T9_connectingtowifi_3_step1

Step 2
Select the SSID on Wi-Fi select page.
T9_ConnectingWi-FiiniOS11_step2

Step 3
Type the Wi-Fi password and click ‘Join.’
T9_ConnectingWi-FiiniOS11_step3_1   T9_ConnectingWi-FiiniOS11_step3_2

Connecting Wi-Fi in Android Nougat
Note: The process may be different for your preferred Android version.

Step 1
Open Settings, go to Wi-Fi, and enable Wi-Fi.
T9_ConnectingWi-FiinAndroidNougat_step1

Step 2
Select the SSID.
T9_ConnectingWi-FiinAndroidNougat_step2

Step 3
Type the Wi-Fi password and click ‘Connect.
T9_ConnectingWi-FiinAndroidNougat_step3


Deleting Wireless Profiles

In the event the wireless is not connected, or if the password has been changed, delete the existing wireless profile and then try to re-connect.

Deleting Wireless Profiles in Windows 10
Note: The process may be different for your preferred Windows version.

Step 1
Click on the Wi-Fi icon found at the lower right corner of the screen.
T9_DeletingWirelessProfiles_step1

Step 2
Click ‘Network and Internet Configuration.’
T9_DeletingWirelessProfiles_step2

Step 3
Click ‘Wi-Fi’ and click ‘Manage known networks.’
T9_DeletingWirelessProfiles_step3

Step 4
Click on the SSID and click ‘Forget.’
T9_DeletingWirelessProfiles_step4

Deleting Wireless Profiles in Sierra MacOS
Note: The process may be different for your preferred MacOS version.

Step 1
Click on the Wi-Fi icon found at the top the screen and click ‘Open Network Preferences.’
T9_DeletingWirelessProfilesinSierraMacOS_step1

Step 2
Click on the lock icon at the bottom left of the menu to make changes and click ‘Advanced…’
T9_DeletingWirelessProfilesinSierraMacOS_step2

Step 3
Click on the saved SSID and click ‘-’ to delete.
T9_DeletingWirelessProfilesinSierraMacOS_step3

Deleting Wireless Profiles in iOS11
Note: The process may be different for your preferred iOS version.

Open ‘Settings’ and then open ‘Wi-Fi.’ Touch the information icon of the selected SSID wish to delete and then touch ‘Forget this network’ on the next page.
T9_DeletingWirelessProfilesiniOS11_step1   T9_DeletingWirelessProfilesiniOS11_step2

Deleting Wireless Profiles in Android Nougat
Note: The process may be different for your preferred Android version.

Open ‘Settings’ and then open ‘Wi-Fi.’ Select and touch the SSID wish to delete for a few seconds and then touch ‘Forget network’ on the next page.
T9_DeletingWirelessProfilesinAndroidNougat1
18. Wi-Fi Speed
IEEE 802.11ac is a wireless network standard that provides high-throughput on the 5GHz band supporting up to 433.33Mbps data rate per antenna (spatial stream). IEEE 802.11n is a wireless network standard that provides network throughput on the 2.4GHz supporting up to 150Mbps data rate per antenna (spatial stream).

HUMAX routers are automatically configured to continuously select the optimal rate for wireless communication between the router and device depending on the surrounding environmental conditions such as distance, wireless signal strength, wireless signal noise, etc. The device may show speeds that are not the fastest rate but the optimal rate.

The table below shows the speeds of IEEE 802.11ac and IEEE 802.11n networks.
T9_wifispeed

Quantum T Series WiFi Max Rate
The different network Wi-Fi standards are applied to each Quantum T Series model as follows.
T9_QuantumTSeriesWiFiMaxRate
19. Configuring Guest Network Settings
The HUMAX router has a Guest Network feature that allows you to have multiple wireless network names (SSID).
Create the Guest Network based on the following steps:

Step 1

Open the browser of your preferred wireless device (Smart Phone, PC etc) and connect to the HUMAX WEB UI http://dearmyrouter.net or http://192.168.1.1.

Step 2

Go to the ‘Wireless’ menu and click ‘Guest Network.’
(The menu may be different according to the router model.)
T9_ConfiguringGuestNetworkSettings_step2

Step 3
Click the ‘Add’ button.

Note: The process is the same for both the 2.4GHz and 5GHz guest networks)
T9_ConfiguringGuestNetworkSettings_step3

Step 4
The HUMAX router automatically provides default settings for Guest Network which requires no modification.
Note: The default Wi-Fi password is ‘00000000.’

T9_ConfiguringGuestNetworkSettings_step4

After setting, click ‘Apply’ to complete the process.
20. WPS Settings
The WPS (Wi-Fi Protected Setup) feature allows you to easily add wireless devices to the network. Presently, the HUMAX router has a physical WPS button, but the feature may also be accessed through the HUMAX WEB UI.

Note: The following conditions may cause the WPS feature to not function:
- The wireless adapter of the connecting device is off.
- The ‘Hide SSID’ feature on your router is turned on.
- The security setting is configured for WPA2-Enterprise, WPA2/WPA-Enterprise, and WEP protocols.

[WPS Settings by using the WPS Button]
T9_WPSSettingsbyusingtheWPSButton

Step 1
Push the red WPS button found on the top of your router.
Note: It may take up to 2 minutes after pushing the button for the WPS feature to function. After 2 minutes, the WPS feature closes.

Step 2
While the WPS function is being accessed, the LED will blink in white.
Push the WPS button on the device to connect with.

(Depending on features/specs for your device, your device may not support WPS and may have a different type of WPS system.)
Blinking will stop after successfully connected.

[Using WPS with the HUMAX WEB UI]

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Wireless’ menu and click ‘WPS.’
(The menu may be different according to each router model.)
T9_UsingWPSwiththeHUMAXWEBUI_step2

Step 3
Click the ‘WPS Button’ and then click the WPS button of the device you are connecting with.
Note: It may take up to 2 minutes after pushing the button for the WPS feature to function. After 2 minutes, the WPS feature closes.

When the devices have connected successfully, the following page will appear to show that your device successfully connected to either the 2.4GHz or 5GHz network SSID.

When your router has connected successfully by WSP, the following page will appear to show that your device successfully connected.
(The page may be different according to the router model.)
T9_UsingWPSwiththeHUMAXWEBUI_step3
21. If You Lose Your Wi-Fi Password
If you lose your Wi-Fi password, do the following steps:

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Wireless’ menu and click ‘Primary Network.’
(The menu may look different according to model.)
T9_IfYouLoseYourWi-FiPassword_step2

Step 3
Note: The way to verify the password is the same for both the 2.4GHz and 5GHz channels. Click the eye icon to the right of ‘Password.’
(The menu may look different according to model.)
T9_IfYouLoseYourWi-FiPassword_step3
22. When You Can’t Find a Wi-Fi Signal
If you can’t find the wireless SSID of the HUMAX router, do the following steps:

Step 1
Open the browser of your preferred device (PC or Smart Phone) and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Advanced’ menu and click ‘Wireless.’
(The menu may look different according to model.)
T9_WhenYouCantFindaWi-FiSignal_step2

Step 3
If the wireless feature is disabled, click to enable.
Note: The way to enable the wireless feature is the same for both the 2.4GHz and 5GHz channels.
T9_WhenYouCantFindaWi-FiSignal_step3

The SSID May Not Be Visible If Configured As “Hidden.”
Do the following steps to verify if the SSID is configured to be hidden:

Step 1
Go to the ‘Wireless’ menu and click ‘Primary Network.’
(The menu may look different according to model.)
T9_TheSSIDMayNotBeVisibleIfConfiguredAsHidden_step1

Step 2
Disable ‘Hide SSD’ if configured to be enabled.

Note: The way to disable the ‘Hide SSD’ feature is the same for both the 2.4GHz and 5GHz channels.
T9_TheSSIDMayNotBeVisibleIfConfiguredAsHidden_step2
23. USB Configuration
The HUMAX router allows you to connect a USB memory or external hard disk drive to use as a file server.
Note: Some external hard disk drives may not be compatible.

Step 1
Connect the USB memory or external hard disk drive to the HUMAX router.

Step 2
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 3
Go to the ‘Media Share’ menu and click ‘USB.’
T9_USBConfiguration_step3

Step 4
If the USB memory or external hard disk is recognized, your will see the following page that will show the memory or hard disk information.
T9_USBConfiguration_step4

Step 5
Click the ‘Folder Path’ menu and select the folder to share.
T9_USBConfiguration_step5

After selecting the folder, type a description regarding the folder to connect it the account when configuring the File Server.
T9_USBConfiguration_step5_1

After completing the configuration, click ‘Save’ and then click ‘Apply.’

Step 6
Configure the account and setup password in the ‘Account Settings.’ This account will the account used when accessing the file server supplied by Quantum.
T9_USBConfiguration_step6

After completing the configuration, click ‘Save’ and then click ‘Apply.’
24. FTP Server Configuration
The HUMAX router acts as a file server in your home. Your files can be accessed through HUMAX routher at the office or when out of the house.

Note: In order to use the FTP Server function, a USB memory or external hard drive must be connected to the HUMAX router.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step2
Go to the ‘Media Share’ menu and click ‘Server Settings.’
T9_FTPServerConfiguration_step2

Step 3
Click to enable FTP Server and select the account name and the description of the shared folder to access. You can make an account when configuring the USB.
Setup USB Configuration (Go to the question 23.)
T9_FTPServerConfiguration_step3

After completing the configuration, click ‘Apply.’

Step 4
Link with DDNS to access the HUMAX router file server from the office or when out of the house.
DDNS Configuration (Go to the question 37.)
Check IP Address (Go to the question 47.)

- Connect with your preferred browser:
Type ftp://router_ip_address or ftp://ddns_domain to login to your account and access the file server.
T9_FTPServerConfiguration_step4_1

- To connect from File Explorer:
Click the Windows Explorer T9_FTPServerConfiguration_step4_window or type WINDOWS + E and type ftp://router_ip_address or ftp://ddns_domain to login to your account and access the file server.
T9_FTPServerConfiguration_step4_2
25. Media Server Configuration
The HUMAX router allows you to connect a USB device to use as a media server. You can share music, picture, video, and other files in the USB device with any device connected to the HUMAX router.

Note: In order to use the Media Server function, a USB device with media files must be connected to the HUMAX router.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Media Share’ menu and click ‘Server Settings.’ Click to enable ‘Medial Server (DLNA)’
T9_MediaServerConfiguration_step2

T9_MediaServerConfiguration_step2_1

How to Connect to the Media Server of the HUMAX Router?

Step 1
Run the file sharing program or app on your preferred devices connected to the HUMAX router. Select the name of the media server on the HUMAX router and access the files.

Windows Media Player (PC)
Note: The process may be different for your preferred program/app.
T9_HowtoConnecttotheMediaServer_1

Smartphone (Mobile device)
Note: The process may be different for your preferred program/app.
T9_HowtoConnecttotheMediaServer_2
26. SAMBA Server Configuration
The HUMAX router has a SAMBA server feature that allows you to share files between devices with a different OS.

Note: In order to use the SAMBA Server function, a USB device must be connected to the HUMAX router.

To use SAMBE Server, do the following steps:

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Media Share’ menu and click ‘USB.’
(The menu may be different according to the router model.)
T9_SAMBAServerConfiguration_step2

Step 3
After verifying that the USB device is properly connected to the HUMAX router as shown below, click ‘Add’ in the ‘Network Folder’ page.
T9_SAMBAServerConfiguration_step3

Click ‘Select the Folder to Share.’
T9_SAMBAServerConfiguration_step3_1

Select the folder to share and click ‘OK.’
Note: Long folder names (i.e., Folder Path) may not be supported.
T9_SAMBAServerConfiguration_step3_2

After selecting a folder, type a description of the folder added and select ‘Write/Read’ or ‘Read’ before clicking ‘Save.’

Note: You can choose only ‘Write/Read’ or ‘Read’ for the folder when accessing by SAMBA or FTP.
T9_SAMBAServerConfiguration_step3_3

After configuring the network folder, click ‘Apply’ and verify the information.
T9_SAMBAServerConfiguration_step3_4

Your Network Folder selection is completed now.
T9_SAMBAServerConfiguration_step3_5

Step 4
Configure the account to access SAMBA. The account will be used for FTP and SAMBA access. Click “Add” first.
T9_SAMBAServerConfiguration_step4

Enter your preferred ID name and password. Click the eye icon to see the password.
Note: Names such as admin, root, anonymous may not be used (regardless of capitalization).
T9_SAMBAServerConfiguration_step4_1

Click ‘Save’ after entering the ID and password. Click ‘Apply’ to complete the process.
※ Note: Click ‘Apply’ to complete the account setting process.
T9_SAMBAServerConfiguration_step4_2

The account setting process is completed now.
T9_SAMBAServerConfiguration_step4_3

Step 5
After configuring the network folder and account, go to the ‘Media Share’ menu and click ‘Server Settings.’
T9_SAMBAServerConfiguration_step5

As depicted below, enable the Windows Network (Samba).
T9_SAMBAServerConfiguration_step5_1

In the SAMBA window, select the connection name and the account and network name previously made.
T9_SAMBAServerConfiguration_step5_2

If the user is accessing SAMBA on a PC, the connection name is HUMAX_SAMBA.
Note: If you select ‘Anonymous’ as the account to connect to SAMBA, there is no need to input an ID or password (possible security risk).
T9_SAMBAServerConfiguration_step5_3

Click ‘Apply’ to complete the process.
T9_SAMBAServerConfiguration_step5_4

Using SAMBA (in Windows 10)
There are 2 ways to connect to SAMBA locally.
Note: The process may be different for your preferred Windows version.

Using WINDOWS + R to open the ‘Run’ Window

Press WINDOWS + R and open the ‘Run’ window.’ Type ‘\_HUMAX Router IP.’ (The diagram below shows the HUMAX router IP address as 192.168.1.1)

Click ‘OK’ and a Windows Explorer window will open.
T9_UsingSAMBA_1

The ‘humax_samba’ icon as configured in the HUMAX WEB UI will appear.
T9_UsingSAMBA_2

Double-click the ‘humax_samba’ icon and a login popup window will appear. Type in the SAMBA account as configured.

Note: If ‘Anonymous’ was configured in the account, the pop-up window may not appear but connect immediately.

T9_UsingSAMBA_3

Connection will be made after completing the log-in process.
T9_UsingSAMBA_4

Adding a Network Location in My PC

Double-click the ‘My PC’ icon. Find the ‘Map network drive’ icon, as in the upper left part of the diagram below.
T9_AddingaNetworkLocationinMyPC_1

In the below diagram, type ‘\_HUMAX Router IP’ in the folder address and click ‘Finish.’

T9_AddingaNetworkLocationinMyPC_2

If the the network location was added properly, you will see the SAMBA in ‘My PC.’
T9_AddingaNetworkLocationinMyPC_3

You can access SAMBA after logging in.
27. Printer Server Configuration (Network Print Setting)
The HUMAX router allows you to connect a USB printer to use as a network printer.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Media Share’ menu and click ‘Server Settings.’ Enable ‘Printer Server.’
T9_PrinterServerConfiguration_step2

T9_PrinterServerConfiguration_step2_1

Step 3
Connect the printer to the USB port and check the page to verify that the printer is recognized.
Note: The process may be different for your preferred Windows version.

T9_PrinterServerConfiguration_step3

If the page is not updated, press F5 or click ‘Refresh’ to refresh the page.

How to Setup Network Printer.

Step 1
Add the printer to your PC (Windows 8.1 shown below) connected to HUMAX router.
1) Enter from Control Panel > Hardware and Sound > Advanced Printer Setup
T9_HowtoSetupNetworkPrinter_step1

T9_HowtoSetupNetworkPrinter_step1_1

2) Click ‘The printer that I want isn’t listed’
T9_HowtoSetupNetworkPrinter_step1_2

  3) Select ‘Add a printer using TCP/IP address or hostname.’
T9_HowtoSetupNetworkPrinter_step1_3

  4) Type the IP address of the HUMAX router and click ‘Next.’
Note: You can verify the IP address of the HUMAX router by going to FAQ > 6. Advanced Configuration > IP Check
T9_HowtoSetupNetworkPrinter_step1_4

T9_HowtoSetupNetworkPrinter_step1_4_1

5) Click ‘Standard’ device type, select ‘Generic Network Card,’ and click ‘Next.’
T9_HowtoSetupNetworkPrinter_step1_5

6) Select the proper printer driver and click ‘Next.’
T9_HowtoSetupNetworkPrinter_step1_6

  7) Enter your preferred printer name.
T9_HowtoSetupNetworkPrinter_step1_7

  8) Select ‘Share this printer so that others on your network can find and use it’ and input ‘Share name’
T9_HowtoSetupNetworkPrinter_step1_8

  9) The printer is added.
T9_HowtoSetupNetworkPrinter_step1_9

Step 2
You can use the network printer through your preferred devices connected to HUMAX router now.
T9_HowtoSetupNetworkPrinter_step2
28. UPnP Configuration
The HUMAX router allows you to automatically configure program ports to access games, Windows Live Messenger, Skype, Torrent, etc. and other peer-to-peer (P2P) programs using Universal Plug and Play (UPnP).

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Advanced’ menu and click ‘UPnP.’
T9_UPnPConfiguration_step2

Step 3
Enable ‘UPnP’ and configure the details.
T9_UPnPConfiguration_step3

Step 4
Run the program that supports UPnP (ex. Skype) and click the ‘refresh’ icon.
T9_UPnPConfiguration_step4

Step 5
Verify that the ports have been automatically configured.
T9_UPnPConfiguration_step5
29. IPTV Configuration
The HUMAX router allows you to connect and configure an IPTV set top box.

Note: If the IPTV works in the default mode, there is no need to configure for IPTV.

To use IPTV, do the following steps:

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.
Step2
Go to the ‘Advanced’ menu and click ‘IPTV.’ (The menu may look different according to model.)
T9_IPTV Configuration_step2

Step 3
Enable IPTV and select the proper ‘Service Type.’

Use this feature for certain IPTV service by an internet service provider (ISP) found in some countries such as South Korea, Malaysia, Singapore, etc. If you find the proper service type, click ‘Apply.’ (Configuration will be automatic. If you want to manually configure, click ‘User Define.’)
※ ISP (Internet service provider): AT&T, KT, SKT, Vodafone etc.
T9_IPTV Configuration_step3
(for Quantum T9)

T9_IPTV Configuration_step3_1
(for Quantum T9X)

Step 4
After configuration, connect the set top box to the IPTV Lan port on the HUMAX router. The IPTV should function properly.

The following is an example of connecting a KT IPTV to the LAN port.
T9_IPTV Configuration_step4_1
( for Quantum T9)

T9_IPTV Configuration_step4_2
( for Quantum T9X)

T9_IPTV Configuration_step4_3

Note: You can access the HUMAX WEB UI of your router by Wi-Fi or from an internet LAN port. If you access a LAN port configured for IPTV or IP-Phone, the WEB UI may get disconnected.

How to Configure for ‘User Define’

If your ISP is not found in the ‘Service Type’ list, you need to manually configure the IPTV by selecting ‘User Define.’

After entering your ISP detailed information, connect the set top box to the IPTV Lan port on the HUMAX router. The IPTV should function properly.

T9_HowtoConfigureforUserDefine
( for Quantum T9)

T9_HowtoConfigureforUserDefine1
( for Quantum T9X)

Note: Contact your local ISP operator for detailed information such as VLAN ID, VLAN Priority, etc.
30. VPN Server Configuration
The HUMAX router supports virtual private network (VPN) server function by PPTP and L2TP (over IPSec) and VPN Client. Do the following steps to configure the VPN server and connect to the VPN client.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to the HUMAX WEB UI.

Step 2
Go to the ‘SECURITY’ menu and click ‘VPN.’ Enable ‘VPN Server’ and select ‘VPN Type.’
T9_VPNServerConfiguration_step2

Step 3.
Select VPN Mode and VPN Type.
T9_VPNServerConfiguration_step3

Step 4.
In order to use the VPN Server, select the type.
VPN Type - PPTP
T9_VPNServerConfiguration_step4

VPN Type - L2TP over IPSec
T9_VPNServerConfiguration_step4_1

To use VPN Type PPTP, select VPN Type PPTP, click ‘Add,’ and input ‘User Name’ and ‘Password.’ To use VPN Type L2TP, select VPN Type L2TP, click ‘Add,’ and input ‘User Name’ and ‘Password.’
For L2TP, you must configure the Pre-shared Key. You can add up to 10 accounts for each type.

Note: Before configuration, make sure the HUMAX router is connected to the internet.

Step 5

Connecting to the VPN server is different according to the OS of your preferred device.

Android OS (ex. Samsung Galaxy Note 5)
Note: The process may be different for your preferred Android version.
T9_VPNServerConfiguration_step5_1   T9_VPNServerConfiguration_step5_2

iOS only for L2TP (ex. iPhone)
Note: The process may be different for your preferred iOS version.
T9_VPNServerConfiguration_step5_3
T9_VPNServerConfiguration_step5_4

* iOS does not support PPTP type.

How to connect in Windows10
Note: The process may be different for your preferred Windows version.
T9_VPNServerConfiguration_step5_5

Each mode allows connection to VPN server mode.

Note:
1. According to server type (PPTP/L2TP), configure the client type accordingly.
2. Some iPhones may not support PPTP.
3. For server type LT2P, a pre-shared key must be included.
4. For final configuration, information may be necessary for other fields.

Configuring VPN Client
The HUMAX router supports VPN client function by PPTP and L2TP (over IPSec). Configure the VPN client and VPN server by the following steps.

Step 1
Open the browser of your preferred device, type http://dearmyrouter.net or http://192.168.1.1 in the address window, and connect to the HUMAX WEB UI

Step 2
Go to the ‘Security’ menu, click ‘VPN,’ and enable ‘VPN Server.’
T9_ConfiguringVPNClient_step2

Step 3
Select ‘VPN Client’ and ‘VPN Type.’
T9_ConfiguringVPNClient_step3

Step 4
Configuring VPN Client

Configuring PPTP Type
T9_ConfiguringVPNClient_step4_1

Configuring L2TP (over IPSec) Type
T9_ConfiguringVPNClient_step4_2

Note:
1. According to server type (PPTP/L2TP) to connect to, configure the HUMAX router VPN client type accordingly.
2. For server type LT2P, a pre-shared key must be included.
3. Connect to VPN server by L2TP (over IPSec), as there may be restrictions when using L2TP individually rather than L2TP (over IPSec).
31. Configuring MAC Filtering for LAN & Wi-Fi
The HUMAX router allows you to restrict specific devices access to the router according to a device’s MAC address.

Manual MAC Filtering (Direct Input)
Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to the HUMAX WEB UI (http://dearmyrouter.net).

Step 2
Go to the ‘SECURITY’ menu and click ‘Filtering.’
T9_ManualMACFiltering_step2

Step 3
Select the device according to the MAC address.
T9_ManualMACFiltering_step3

Step 4
Click the pencil icon button on the right side of the list of connected devices to edit.
Click ‘Apply’ to complete the process.
T9_ManualMACFiltering_step4

Add Mac Filtering in Connected Devices Web (Through Search)
The HUMAX router allows you to easily use MAC filtering and see the information for all devices connected to it.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to the HUMAX WEB UI (http://dearmyrouter.net).

Step 2
Click ‘Devices’ in the HOME menu.
T9_AddMacFiltering_step2

Step 3
Click the pencil icon in ‘Connected Devices.’
T9_AddMacFiltering_step3

Step 4
Click ‘+’ to add for MAC Filtering.
T9_AddMacFiltering_step4

Step 5
Verify the MAC address to be blocked.
T9_AddMacFiltering_step5

You can verify the address in the HUMAX WEB UI at SECURITY > Filtering > MAC Filtering.
T9_AddMacFiltering_step5_1

Step 6
Click the icon to unblock the MAC address.
T9_AddMacFiltering_step6
32. IP/Port Filtering Configuration
The HUMAX router allows the blocking of certain internet sites or services by filtering the IP or port.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to the HUMAX WEB UI.

Step 2
Go to the ‘SECURITY’ menu and click ‘Filtering.’
T9_IPPortFilteringConfiguration_step2

Step 3 Verify the IP address, port, and protocol of the application or program in use on your preferred device and click ‘Save.’
T9_IPPortFilteringConfiguration_step3

Step 4
Click ‘Apply’ to complete the process.
T9_IPPortFilteringConfiguration_step4
33. Configuring Parental Control
The HUMAX router allows you to restrict and control the length of time and usage of games, You Tube, and SNS your children have access to.

To configuring Parental Control, do the following steps:

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘SECURITY’ menu and click ‘Parental Control.’
(The menu may be different by model.)
T9_ConfiguringParentalControl_step2

Step 3
Click to enable ‘Parental Control’ and click ‘Add.’
T9_ConfiguringParentalControl_step3

Step 4
Click +Add and see the additional window for configuration.

Configure ‘Device Name/MAC Address,’ ‘Service Filters,’ and ‘Block Schedule’ and click ‘Save’ to complete the process.

T9_ConfiguringParentalControl_step4

Configuring Device Name/MAC Address

Click ‘Select the Device’ to see all the devices connected to the HUMAX router. If you find the device to add ‘Parental Control,’ click on that device. If you don’t see the device on the list, click ‘Enter the MAC Address’ (below blue diagram). Multiple devices may be configured.

※ Configuring MAC Address

Android OS
Note: The process may be different for your preferred Android version.
Settings > System > Device Information > Wi-Fi MAC Address

iOS
Note: The process may be different for your preferred iOS version.
Settings > General > About > Wi-Fi Address

Windows OS
Note: The process may be different for your preferred Windows version.
Control Panel > Network and Sharing Center > Change Adapter Configuration
> right click the network adapter > Status > Details > Physical Address

T9_ConfiguringDeviceName_1

Configuring Service Filters
Click ‘Setup the Filters’ to open a window with a list of various services.
Click each service to find a detailed list. Click the specific service(s) to be added.
Multiple services may be configured.
(The diagram below shows ‘Social Network’ service and ‘Facebook’) T9_ConfiguringServiceFilters_1

If the service is not found in the list, click ‘User Define’ to manually configure the services.
Click to add keyword or URL address.
Afterwards, click ‘Save’ to complete the process.
To add more services, select the service to configure and click ‘Save.’

T9_ConfiguringServiceFilters_2

Configuring Block Schedule
Click ‘Setup the Schedule’ to open a window to configure the schedule times.
The default configuration is ‘Always Block.’
You can click or drag to configure the hours and days to restrict access.
After selecting the activation time period, click ‘Save’ to complete the process.

T9_ConfiguringBlockSchedule_1

(The diagram below shows restricting access on Tuesday, Wednesday, Thursday, and Friday from 00:00 to 17:00) T9_ConfiguringBlockSchedule_2

Configuring Parental Code

The HUMAX router provides for a parental code for secure access to Parental Control.
Go to the ‘Parental Control’ page and enable ‘Parental Control.’
You will be directed to a page to set the parental code.
Parental Code Configuration.

After setting the parental code, click ‘OK’ to complete the process.
T9_ConfiguringParentalCode_1

Go to the ‘Parental Control’ page and enable ‘Parental Control.’
The next page will ask you to input a parental code.

T9_ConfiguringParentalCode_2

As shown below, configure a parental code and click ‘OK’ to complete process. (You are required to input a parental code twice.)
T9_ConfiguringParentalCode_3
34. Configuring WoL
The HUMAX router has a Wake-on-LAN function that allows you to power on a PC connected to the network.
Note: This function only works with PCs that support WoL. Some PCs may require a change in configuration either in the BIOS or network driver.

Configuring WoL on the PC

Go to the Control Panel > Device Manager > Network adapters > right click the network card > Properties > Details > Advanced > enable Wake On Magic packet.
T9_ConfiguringWoLonthePC_1

After clicking ‘Properties,’ verify that the ‘Wake on Magic Packet’ property is available, and make the ‘Value’ as ‘Enabled.’
NOTE: If your network card does not support WoL, you may not see the feature.
T9_ConfiguringWoLonthePC_2

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to the HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘DDNS/WoL.’
T9_ConfiguringWoLonthePC_step2

Step 3
Click to add the MAC address of the PC.
T9_ConfiguringWoLonthePC_step3

A PC that has previously connected to the router will be pop up in a list. Click the PC to add.
Note: A PC that was previously connected by Wi-Fi will not be found on the list, as the WoL function does not work with devices connected wirelessly.
T9_ConfiguringWoLonthePC_step3_1

Step 4
You can power your PC when the icon is colored (activated).
A dark icon represents a PC that is either already on or not connected to the network.

Note: The WoL feature only works with PCs that are connected by a LAN cable to the router.
T9_ConfiguringWoLonthePC_step4

Step 5
Afterwards, go to the HUMAX WEB UI Home page and click ‘Devices’ to see which devices are configured for WoL.
T9_ConfiguringWoLonthePC_step5
T9_ConfiguringWoLonthePC_step5_1
35. Configuring PortFowarding
The HUMAX router allows access to it from a device outside the network.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘Port Forwarding/DMZ.’
T9_ConfiguringPortFowarding_step2

Step 3
Click the service types to allow and click ‘Save.’
To configure manually, click ‘User Define’ and input the port details.
Local Port: Internal host port connected to the Quantum
External Port: Port connected to the Quantum gateway externally
T9_ConfiguringPortFowarding_step3

Step 4
Click ‘Apply’ to complete the process.
T9_ConfiguringPortFowarding_step4
36. Configuring DMZ
A DMZ (demilitarized zone) on a home router refers to a DMZ host which is a host on the internal network that has all UDP and TCP ports open and exposed, except those ports otherwise forwarded. The HUMAX router allows to act as a DMZ host.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘Port Forwarding/DMZ.’

T9_ConfiguringDMZ_step2

Step 3
Enable ‘DMZ.’
T9_ConfiguringDMZ_step3

Step 4
Input the destination IP address, and click ‘Save.’
T9_ConfiguringDMZ_step4

Step 5
Click ‘Apply’ to complete the process.
T9_ConfiguringDMZ_step5
37. Configuring DDNS and HUMAX DDNS
The HUMAX router supports HUMAX DDNS, a service provided by HUMAX that allows you to use DDNS easily and free of charge.

Configure HUMAX DDNS to allow access to the HUMAX router from a device outside the network.

Note: In order to configure the HUMAX router to access devices connected to the network, UPnP and Port Forwarding configuration is necessary.
Configuring UPnP (Go to the question 28.)
Configuring Port Forwarding (Go to the question 35.)

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘DDNS/WoL.’
T9_ConfiguringDDNSandHUMAXDDNS_step2

Step 3
Enable ‘DDNS.’
Select ‘HumaxDDNS’ as the service provider.
Type the host name (e.g. shhan2), and click ‘Apply.’
T9_ConfiguringDDNSandHUMAXDDNS_step3

Verify that the domain is updated properly as shown below.
The DDNS host is configured as HostName.dearmyrouter.net.
T9_ConfiguringDDNSandHUMAXDDNS_step3_1

Step 4
Open your preferred web browser and connect to http://HostName.dearmyrouter.net:8090

Note: To connect to HUMAX router, remote connection function must be enabled.
Configuring Remote Connection (Go to the question 44.)

Connecting to the HUMAX Router.

T9_ConfiguringDDNSandHUMAXDDNS_step4

Configuring DDNS For Other Providers
The HUMAX router allows you to access the router by an outside provider of DDNS services.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘DDNS/WoL.’
T9_ConfiguringDDNSForOtherProviders_step2

Step 3
Enable ‘DDNS’ and select the service provider.
T9_ConfiguringDDNSForOtherProviders_step3

Step 4
Input the details and click ‘Apply’ to complete the process.
T9_ConfiguringDDNSForOtherProviders_step4
38. Configuring IPv6
The HUMAX router supports Internet Protocol version 6 (IPv6). If there is an IPv6 server connected to the HUMAX router, it will provide an IPv6 address to all the devices connected to the network to allow internet access.

Note: This function is available only when an IPv6 server is connected to the HUMAX router and if the connected devices support IPv6.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘IPv6.’
T9_ConfiguringIPv6_step2

Step 3
Enable ‘IPv6.’
T9_ConfiguringIPv6_step3
The HUMAX router may reboot. Please wait for the reboot process to be completed.

Step 4
Afterwards, go to the WEB UI Home page and click the HUMAX router icon to verify IPv6 address in details.
T9_ConfiguringIPv6_step4

Note: In the event that the router is given an IPv6 address from the IPv6 server above, a ‘Global IPv6 Address’ will be shown. If there is no IPv6 server or if the router does not receive an IPv6 address, a ‘Unique IPv6 Address’ will be shown.
39. Configuring the Firewall
The HUMAX router provides firewall protection for security.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘SECURITY’ menu and click ‘Firewall.’
T9_ConfiguringtheFirewall_step2

Step 3
Click and enable ‘Firewall.’
T9_ConfiguringtheFirewall_step3

Step 4
Select the security level of ‘Low,’ ‘Medium,’ or ‘High.’
The ‘Allowed Services’ will be shown according to the security level.
T9_ConfiguringtheFirewall_step4

Step 5
To prevent DOS attacks, enable ‘Block TCP SYN flooding’ and ‘Block IP Spoofing’ functions.
T9_ConfiguringtheFirewall_step5

Step 6
To apply the IPv6 firewall, go to the ‘ADVANCED’ menu and click ‘IPv6.’
After verifying that ‘WAN/LAN (IPv6)’ is enabled, enable ‘IPv6 Firewall.’
T9_ConfiguringtheFirewall_step6_1
T9_ConfiguringtheFirewall_step6_2
T9_ConfiguringtheFirewall_step6_3

Step 7
Click ‘Apply’ to complete the process.
40. Configuring QoS
The HUMAX router prioritizes the services for all the devices connected to the network for faster processing. It is possible configure Bit Torrent or Netflix services to have priority for better streaming. It is possible to configure certain devices to have priority for better internet access.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Ciick the ‘QOS’ menu.
T9_ConfiguringQoS_step2

Step 3
Enable ‘QoS’ and click the add button to select the desired devices and services.
T9_ConfiguringQoS_step3_1   T9_ConfiguringQoS_step3_2

Step 4
Selected devices and/or services.
When the priority box pops up, drag the selected devices and/or services in the priority box.
T9_ConfiguringQoS_step4

Step 5
Drag the level of priority for the devices and services.
Note: Select up to three (3) devices/services for ‘Ultra Priority’ and up to five (5) devices/services for ‘High Priority.’
T9_ConfiguringQoS_step5
41. Security Self Check
The HUMAX router allows you to check the security status.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘SECURITY’ menu and click ‘Security Self-Check.’
T9_SecuritySelfCheck_step2

Step 3
A list will show the categories and their risk level.
Red will signify that there is a risk, while blue will signify that there is no risk.
Click on the red links to change the configurations.
T9_SecuritySelfCheck_step3

  • Login Password Changed: Shows if the login password was changed. Increase security by changing the password after the initial login.
  • 2.4GHz Wireless Password Security Type: Shows the security level of the 2.4GHz wireless password. (None or WEP is weak security.)
  • 5GHz Wireless Password Security Type: Shows the security level of the 5GHz wireless password. (None or WEP is weak security.)
  • Remote Access: Shows if remote access to the WEB UI by a device outside the network is allowed. (If allowed, keep the password secure.)
  • Login Password Security Level: Shows the security level of the login password. (Recommended to use a mix of letters, numbers, and symbols.)
  • UPnP Service:
  • PING from WAN: Shows if configuration prevents attacks by PING by a device outside the network.
  • DMZ: Shows if the DMZ function is enabled. Use caution so that the host is not unintentionally exposed to devices outside the network due to improper settings.
  • Port Triggering: Requires caution when enabled, as this will allow devices outside the network to access the network through certain ports.
  • Port Forwarding: Requires caution when enabled, as this will allow devices outside the network to access the network through certain ports.
  • Anonymous Login to FTP Server: Shows if anonymous login to the ftp server is allowed. Requires caution, as it allows any anonymous account to have access to the files on the server without password protection.
42. Configuring Diagnostics
The HUMAX router allows you to self-check the internet connection.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘Diagnostics.’
T9_ConfiguringDiagnostics_step2

Step 3
Set the destination of the target to send a ping and click ‘Start.’
T9_ConfiguringDiagnostics_step3

The ‘Results’ page will show the outcome.

Note: If there is a problem with the internet connection, the outcome will show as ‘Fail.’ The following type of outcome will occur when the ping is sent in normal conditions.
T9_ConfiguringDiagnostics_step3_1

Step 4
Select ‘Traceroute’ from Utility.
T9_ConfiguringDiagnostics_step4

Set the destination of the target for traceroute and click ‘Start.’
T9_ConfiguringDiagnostics_step4_1

The diagnostic may take longer according to the internet connection.

The ‘Results’ page will show the outcome.
Note: If there is a problem with the internet connection, the outcome will show as ‘Fail.’
The following type of outcome will occur when the trace route is completed normally.
T9_ConfiguringDiagnostics_step4_3
43. Configuring LED
Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘System’ icon found in the upper right-hand corner and click   T9_ConfiguringLED_step2_1   ‘LED Mode.’ (The menu may look different according to router model.)
T9_ConfiguringLED_step2_2

Step 3
The LED has 4 brightness settings: High, Medium, Low, and Off.
Any changes without clicking ‘Apply’ will be temporary.
Check the brightness of the LED and select an appropriate brightness.
Click ‘Apply’ to make any changes permanent.
T9_ConfiguringLED_step3

Configuring LED Scheduling

The HUMAX router allows you to control when the LED lights are on.
Enable ‘LED Schedule,’ select the ‘LED Specific Brightness,’ and select the start and end times of the schedule. Click ‘Apply’ to complete the process.
The diagram below shows the LED configured to be off from 21:00 ~ 06:00 and at ‘Mid’ level brightness during other times.
T9_ConfiguringLEDScheduling_1

Controlling LED Brightness by Button

At the back of the HUMAX router is a button to control LED brightness.
(This may differ according to router model.)
Push the button to adjust LED brightness from High, Medium, Low, to Off.
Note: LED scheduling is possible only through the HUMAX WEB UI.
T9_ControllingLEDBrightnessbyButton
44. Configuring Remote Access
The HUMAX router allows remote access from outside the network.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect HUMAX WEB UI.

Step 2
Go to the ‘ADVANCED’ menu and click ‘Network.’
T9_ConfiguringRemoteAccess_step2

Step 3
Enable ‘Remote Access’ and select the remote access port. (The default setting is for remote access to be disabled.)
T9_ConfiguringRemoteAccess_step3

Click ‘Apply’ to complete the process.

Step 4
Connect to the HUMAX router by the IP address or DDSN domain address and port number from your preferred browser.
- Connecting by IP
IP Check (Go to the question 47.)
T9_ConfiguringRemoteAccess_step4_1

- Connecting by DDSN Domain
Configuring DDNS (Go to the question 37.)
T9_ConfiguringRemoteAccess_step4_2
45. Firmware Version Check
Check the firmware version of the HUMAX router as follows:


Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the Home menu.
The firmware version can be verified at the ‘HOME’ menu.
T9_FirmwareVersionCheck_step2

Step 3
Verify the firmware version in the information box as shown below.
T9_FirmwareVersionCheck_step3

HUMAX regularly updates the firmware and recommends installing the most recent firmware for performance improvements, functional additions, improved stability, increased security, etc.
46. Firmware Update
HUMAX regularly updates the firmware recommends installing the most recent firmware for performance improvements, functional additions, improved stability, increased security, etc.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘System’ icon found in the upper right-hand corner and click ‘Firmware Update.’
T9_FirmwareUpdate_step2

Step 3 (Direct firmware update download)
On the ‘Firmware Update’ screen, if there is no firmware update, it will show ‘The current version is up to date.’
T9_FirmwareUpdate_step3

If you have a separate firmware file to install, click ‘Choose the file’ and find the file and select it.

After selecting the file, you will the following page.
T9_FirmwareUpdate_step3_1

Click ‘Firmware Update’ to see the following message.
T9_FirmwareUpdate_step3_2

Click ‘OK’ to begin the update process and you will see the following page.
Thereafter, LED will begin to flash.
T9_FirmwareUpdate_step3_3

The update may take many minutes.
If the update is completed properly, the LED will stop flashing and keeps the white color.

Step 4 (Update through the HUMAX server)
On the ‘Firmware Update’ screen, if there is a firmware update, it will show ‘New Firmware available.’
T9_FirmwareUpdate_step4

To update from the HUMAX server, click ‘Firmware Update’ to download the firmware and begin the update process. The same process will occur as in Step 3.

Step 5 (Automatic Updates)
Enable ‘Auto Update’ in the Firmware Update window as the page below.
After the next login, the router will connect to the server and verify if there is a new firmware update available.
T9_FirmwareUpdate_step5

Enable ‘Auto Update.’ After the next login, the router will connect to the server and verify if there is a new firmware update available.

If a new update is available, the following page will appear.
Click ‘OK’ to begin the update process.
T9_FirmwareUpdate_step5_1

Note: If you have problems connecting to the HUMAX WEB UI after an update, delete the temporary cash file(s) of your browser for better connection to the WEB UI.
47. IP Address Check
The HUMAX router allows you to verify configured internal and external IP addresses as well as the IP addresses of all devices (PC, smart phones, etc.) connected to the network.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the Home menu and click on the ‘Internet’ icon to verify the external IP address of the router.
T9_IPAddressCheck_step2_1
T9_IPAddressCheck_step2_2

Step 3
Click the ‘HUMAX Router’ icon to verify the internal IP address of the router.
T9_IPAddressCheck_step3

Step 4
Click the ‘Devices’ icon to verify the IP addresses of all devices connected to the network.
T9_IPAddressCheck_step4

Note: To verify the IPv6 address, go to HOME > FAQ > 6. Advanced Configuration > IPv6 Configuration.
48. MU-MIMO
The HUMAX router has multiple user, multiple input, multiple output (MU-MIMO) technology for improved wireless performance.
Each antenna communicates with each device to provide improved capacity over existing MIMO technology.
T9_MU-MIMO_1

Existing MIMO technology uses the SU-MIMO, causing communication to go to one device first and then to go other devices sequentially when multiple devices are present. However, the HUMAX router uses MU-MIMO technology which allows simultaneous communication to all devices at optimal speeds, increasing wireless capacity usage.
T9_MU-MIMO_2

This allows simultaneous streaming of multimedia services to multiple devices.
49. Restart & Factory Reset
The HUMAX router allows you to restart the device or return the router to the original factory settings.

Restarting the Router

A restart can be done either through the HUMAX WEB UI or by a physical button.
While the router is restarting, there is limited wireless and internet access.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to the HUMAX WEB UI.

Step 2
Go to the ‘System’ icon found in the upper right-hand corner and click ‘Restart/Factory Reset.’
T9_RestartFactoryReset_step2

Step 3
Click ‘Restart’ on the new page to begin the process.
T9_RestartFactoryReset_step3

Click ‘Cancel’ to stop the restart process. You will go back to the previous page.
Click ‘OK’ to begin the restart. After the restart, the login page will appear.
T9_RestartFactoryReset_step3_1

Restarting by Button

The reset button can be found at the back of the router.
Press the button for 3 seconds and the LED lights will go dark and begin the restart process.
T9_RestartingbyButton

Factory Reset

A factory reset will cause the router to return to the factory settings and can be done either through the HUMAX WEB UI or by a physical button. After the factory reset, all configurations will be lost and return to the original factory settings, and the router will restart. When the router is restarting, there is limited wireless and internet access.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘System’ icon found in the upper right-hand corner and click ‘Restart/Factory Reset.’
T9_FactoryReset

Step 3
Click ‘Factory Reset’ on the new page to begin the process.
T9_FactoryReset_step3

Click ‘Cancel’ to stop the reset process (going back to the previous page).
Click ‘OK’ to begin the reset. After the reset, the router will restart and the login page will appear.

Factory Reset by Button
T9_FactoryResetbyButton

The reset button can be found at the back of the router. Press the button for more than 5 seconds and the LED lights will blink rapidly and begin the factory reset process.
50. Configuring Dual WAN
The HUMAX router has a two wide area networks (WAN) with a dual WAN capability.

Configure dual LAN by the following steps.

Note: To use both WAN, connect the LAN cable from the modem to the router and connect another USB mobile broadband modem or Android device to the router.
T9_ConfiguringDualWAN_1

Note: Internet service charges may occur from using mobile 3G, 4G, LTE, etc. WAN services.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.
Step 2
Go to the ‘NETWORK’ menu and click ‘Internet.’
(The menu may look different according to router model.)
T9_ConfiguringDualWAN_step2

Step 3
Enable ‘Dual WAN’ and select the primary and secondary WAN.

Configuring Dual WAN Fail Over
To enable the Dual WAN function, configure the Dual WAN Type to “Fail Over.” The primary WAN is the main WAN to use and the secondary WAN is a backup for use when the primary WAN internet connection is disconnected.
T9_ConfiguringDualWANFailOver

Both primary & secondary WAN support Ethernet, USB, and Android tethering.
1. Ethernet: The common WAN using an internet cable for communication
2. USB: A mobile modem with a USB port for communication (ex. HU7600, LG SD711, etc.)
3. Android tethering: An Android OS-based device using the tethering function through a USB port for communication (ex. Nexus 5X, Galaxy Note 5, LG V20 etc.)

Fail Over Type
When both WAN are connected to the internet, communication is through the primary WAN. If the primary WAN is disconnected from the internet, the secondary WAN is used to connect to the internet to minimize communication stoppage. If only one of the WAN is connected to the internet, communication is though that WAN.

The following shows the Ethernet as the primary WAN and an Android tethering as the secondary WAN.
T9_FailOverType

Configuring Dual WAN Load Balance

When using the Dual WAN function, configure the Dual WAN load balance. Select which will be the primary and secondary WAN. HUMAX recommends using the faster speed WAN as the primary WAN.
T9_ConfiguringDualWANLoadBalance

Both primary and secondary WAN support Ethernet, USB, and Android tethering.
1. Ethernet: The common WAN using an internet cable for communication
2. USB: A mobile modem with a USB port for communication (ex. HU7600, LG SD711, etc.)
3. Android tethering: An Android OS-based device using the tethering function through a USB port for communication (ex. Nexus 5X, Galaxy Note 5, LG V20 etc.)

Load Balance Type:

If two WANs are connected to the internet, both WANs are used. Therefore, both internet bandwidths are used, increasing internet speed versus using just one WAN. Each WAN communicates equally. There may be a difference in speed according to bandwidth, line status, connection status type, etc.

In the case when only one of the two WAN is used, communication is through the connected WAN.
The following shows an Ethernet WAN and USB Modem configuration.
T9_LoadBalanceType
51. Configuring Android Tethering WAN
The HUMAX router allows tethering of an Android device to the router’s USB port as an internet connection. The following shows the steps to configure Android Tethering WAN.

Note: To use the Android Tethering WAN, connect the Android device to the router with a USB cable. (Note: Android Tethering may not be supported by all Android versions, and the process may be different for your preferred Android device.)

T9_ConfiguringAndroidTetheringWAN

Note: Internet service charges may occur on the device when using Android Tethering WAN.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect HUMAX WEB UI.

Step 2
Go to the ‘NETWORK’ menu and click ‘Internet.’ (The menu may look different according to router model.)
T9_ConfiguringAndroidTetheringWAN_step2

Step 3
First configure Dual WAN function to configure Android Tethering.
Configuring Dual WAN (Go to the question 50.)

Select USB as either the primary or secondary WAN.

Step 4
When the Dual WAN is configured, the following ‘Internet’ page appears. This is shown when Android Tethering is selected as the secondary WAN.

Verify Android Tethering status by looking at the connection status or clicking on the ‘Internet’ icon on the Home page of the HUMAX WEB UI.
T9_ConfiguringAndroidTetheringWAN_step4

Step 5

After configuring in the HUMAX WEB UI, connect your preferred Android device to the USB port of the HUMAX router. Enable tethering in the Android device. It is now possible to use to internet through the Android Tethering WAN.

Note: Configuring for USB tethering may different for each Android device.
52. Configuring USB WAN
The HUMAX router allows you to use a USB mobile broadband modem to connect to the internet.
The following shows the steps to configure USB WAN.

Note: To use USB WAN, connect the USB mobile broadband modem to the router USB port. The USB modem must be signed up to an ISP 3G, 4G, LTE, etc. broadband service.

T9_ConfiguringUSBWAN

Note: Internet service charges may occur on the device when using USB WAN.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window to connect to HUMAX WEB UI.

Step 2
Go to the ‘NETWORK’ menu and click ‘Internet.’ (The menu may look different according to router model.)
T9_ConfiguringUSBWAN_step2

Step 3
First configure Dual WAN function.
Configuring Dual WAN (Go to the question 50.)

Select Android Tethering as either the primary or secondary WAN.

Step 4
If Dual WAN configuration is completed, the following ‘Internet’ page appears. Configure the USB WAN by adding the details in the red boxes.

The following shows when USB WAN is selected as the primary WAN. If the USB WAN is the secondary WAN, configure the USB WAN on the ‘Internet Setting’ page.
T9_ConfiguringUSBWAN_step4

Note: If the USB WAN is connected properly with only DUAL WAN configured, no other configuration is necessary. If the ISP that the USB modem is registered to has a Location Service Provider, select the correct ISP. If not, select ‘Others.’

Add the details of the ISP such APN service, dial number, user name, password, authentication type, and PIN code. Contact your ISP if necessary, as settings are different for each ISP.

Select the proper USB model if it is available. If not, select ‘Auto.’

Only configure USB MTU in special cases. Only lower the MTU if the USB WAN does not connect or the internet gets disconnected after configuration.

Step 5
After completing configuration, verify USB WAN status by checking Connection Status or clicking on the ‘Internet’ icon on the Home page of the HUMAX WEB UI.

The following is when USB WAN is configured as the primary WAN.
T9_ConfiguringUSBWAN_step5
53. Torrent configuration
The HUMAX router acts as a torrent client. The torrent files can be downloaded to the USB storage device connected with the HUMAX router.

Torrent fucntion is supported from software version 1.00.56 for Quantum T9 / T7 / T5 and 1.00.05 for Quantum T9X / T7X / T5X.

※ Note: In order to use the Torrent function, a USB memory or external hard drive must be connected to the HUMAX router.

Step 1
Open the browser of your preferred device and type http://dearmyrouter.net or http://192.168.1.1 in the address window.

Step 2
Go to the ‘Media Share’ menu and click ‘USB.’
t9x_53.Torrent configuration_step2

Step 3
Configure the account and setup password in the ‘Account Settings.’ This account will the account used when accessing the file server supplied by the HUMAX Router.

※ Note: the account can be used to all server provided by the HUMAX router.
t9x_53.Torrent configuration_step3_1

t9x_53.Torrent configuration_step3_2

After completing the configuration, click ‘Save’ and then click ‘Apply.’
※ Note: admin/root/anonymous are not allowed to use as account.

Step 4
Go to the ‘Media Share’ menu and click ‘Server Settings.’
t9x_53.Torrent configuration_step4

Click to enable Torrent.
t9x_53.Torrent configuration_step4_1

Select the account name USB device.
※ Note: the product supported a USB port, selected automatically.
the product supported 2 USB ports, able to select between 2 USB devices.


t9x_53.Torrent configuration_step4_2

After completing the configuration, click ‘Apply.’
Once completed the configuration, link for ‘Access the Torrent Program’ is created.
t9x_53.Torrent configuration_step4_3

How to use Torrent function?

Step 1
To access Torrent WEB UI, Click link for ‘Access the Torrent Program’ on the configuration page or type http://dearmyrouter.net:9010 or http://192.168.1.1:9010 in the browser.
t9x_53.Torrent configuration_how_step1

t9x_53.Torrent-configuration_how_step1_1

Step 2
Log in with your account.
t9x_53.Torrent configuration_how_step2

Step 3
Click folder icon
t9x_53.Torrent configuration_how_step3

Choose Torrent file on the pop up.
t9x_53.Torrent configuration_how_step3_1

t9x_53.Torrent configuration_how_step3_2

Step 4
Torrent file is able to download to your USB storage device connected to the HUMAX Router.
t9x_53.Torrent configuration_how_step4

※ Note: excessive using Torrent files shall affect the router performance.
54. Time Machine Configuration

1. How to Set up Time Machine


HUMAX High Performance Router provides Time Machine service to back up Mac OS. This service is available by setting it up as follows:
* Note
It can be set up only when USB is connected.
Supports only T10x, T9, T9x, T7, T7x, T5, and T5x models, which are High Performance Routers.

Step 1.  Accessing HUMAX Web UI (http://dearmyrouter.net)
After connecting USB, connect to HUMAX Web UI and click MEDIA SHARE > USB menu. (The actual menu may differ by model.)

Timemachine_1-1

Step 2. Network Folder Setting
Click the Add button on the Network Folder card after making sure that the USB is connected as shown below.

Timemachine_2-1

Click Add followed by Select the folder to Share.
Timemachine_2-2

Select the folder you want to share and click the OK button.
* Note
If the Folder Path is too long, it may not be set.
Timemachine_2-3

Select a Folder, enter the Network Folder name in the Description, select Write/Read in the Folder, and click Save.
* Note
Please restrict the authority set in the folder to Write/Read or Read only when using FTP/SAMBA/Webdav.
Timemachine_2-4

When all the settings of the Network Folder are completed, click the Apply button.
Timemachine_2-5

If you see the result shown below, the Network Folder setup is complete.
Timemachine_2-6

Step 3. Account Setting
After setting the Account to use in Time Machine, click the Add button. The account you set up is available in FTP/SAMBA/WebDav.
Timemachine_3-1

Enter the ID and Password you want to use in Enter the ID/ Enter the Password fields.
Click the Eye Icon to check the Password you entered.
* Note
admin/root/anonymous cannot be used. (Cannot be used without case sensitivity.)
Timemachine_3-2
Enter your ID/Password and click Save.
* Note
Be sure to click Apply in order to create an account normally.
Timemachine_3-3

Click the Apply button to complete account creation as shown below.
Timemachine_3-4

Step 4. Time Machine Setting

Once you have set up the Network Folder and Account above, click the Media share > Server settings menu.
Timemachine_4-1

Click the X button as shown below to activate the Time Machine menu.
Timemachine_4-2

In the activated Time Machine menu, select the Account / Network Folder you created above.
Timemachine_4-3

Limit Size is the capacity to use for the Network Folder. If this is set to a small size, backup may not be performed. Therefore, set it to 0 so that the USB capacity can be fully used.

Click the Apply button to complete the Time Machine setup.
Timemachine_4-4

2. How to Set up Time Machine on Mac OS


Please refer to the Apple Website below when setting up.
Please select HUMAX Time Machine Volume from the disk list when setting.
https://support.apple.com/en-asia/HT201250
https://support.apple.com/ko-kr/ht201250#backup
