Your entire home is covered.

In this mode, mesh nodes talk to one another. You can always get the optimal signal through the best path within network.

Fully extended coverage 4x5dBi antennas

4 external 5dBi antennas combined with higher quality antenna technology provide users with larger wireless coverage and stronger wireless signal intensity from anywhere in your large home or office.

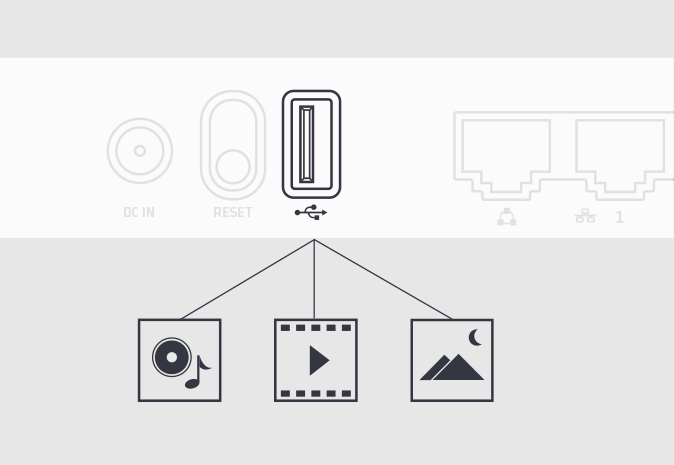

Easy for Sharing Multi-functional USB Port

Using the multi-functional USB port, users can share printers, files and media either throughout the network at home with several different computers or even away. Using the device’s ftp server functions so that you never have to part with your files.

Gigabit Wired Connections for Ultra-fast Data Transfer Speeds

With one gigabit Internet port and four gigabit Ethernet ports, speeds can be up to 10 times faster than Fast Ethernet provide the fastest wired speeds. The QUANTUM is a powerful hub to support a robust and extremely fast wired network.

icon_1
1.2Gbps

icons_beam
Beamforming

icons_dualband
Dual Band

icon_3
Parent Control

icons_roaming
Roaming

icon_4
QoS

icons_mesh
Mesh

icons_vpn
VPN

Rear Specification

TECH SPECS

Specification

Product Category AC1200 Dual Band Smart Wi-Fi Router
Wi-Fi Technology IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Wi-Fi Performance 300Mbps at 2.4GHz, 900Mbps at 5GHz
Wi-Fi Band Simultaneous dual band 2.4 & 5GHz
Antennas External 2.4GHz 2T2R / 5G 2T2R
Advanced Wi-Fi Technology Not applicable
MU-MIMO Not applicable
Beamforming Improves range & performance plus for both 2.4 and 5GHz devices.
Number of Ethernet Ports Five (5) 10/100/1000 (1 WAN and 4 LAN) Gigabit Ethernet ports
Number of USB Ports One (1) USB 2.0 port
Key Features • AC1200 Wi-Fi (300+900 Mbps) speeds
• Roaming & Mesh technology always works connected to the best Wi-Fi signal where users can move room to room and floor to floor.
• Entertainment Port - Works as its optimal level to give you a super-smooth, uninterrupted streaming and gaming experience.
• Beamforming - Improves range & performance plus for both 2.4 and 5GHz devices
• QoS - Prioritize network traffic (streaming, gaming and more)
• Parental Controls to select devices to manage contents(Website level) and schedule settings.
• Efficient antenna layout design minimizes signal interference and maximizes wireless performance.
• One (1) USB 2.0 port for network data transfers between the router and any USB drive.
• Built-in Print Server – Supports wireless printing from multiple computers.
• Built-in Media Server – Allows users to play music, video and view photos.
• Five (5) Gigabit Ethernet ports - Speeds can be up to 10 times faster than Fast Ethernet.
• VPN Server & Client - Secures remote access for privacy.
• Easy Web UI - Ensures a quick installation, making your network setup out of hassle.
• Easy Setup - Assistant with multi-language support provides quick & hassle-free installation.
• Guest network Access - Provides separate Wi-Fi network for your guest.

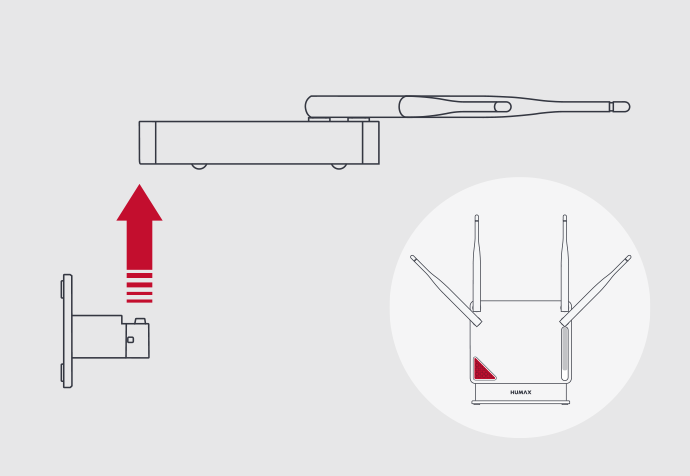

• Wall Mountable - Provides more options as to where you can put the router.
• IPv6 support ready (Internet Protocol Version 6)
Security • Secure Wi-Fi Encryption - WPA-PSK, WPA2-PSK, WEP(64/128bit), WPS
• Guest network Access - Provides separate Wi-Fi network for your guest.
• Double firewall protection (SPI and NAT)
• Parental Controls to manage web filtering & accessibility by service or devices.
• Firewall protection - MAC/IP/Port/URL Filtering, Port forwarding, DMZ and more.
Processor 660MHz single-core
Memory 8MB flash and 128MB RAM
Physical Specifications • Dimensions (WxDxH): 7.1x5.8x1 in. (180x147x26 mm)
• Weight:
Package Contents • QUANTUM T3A
• Power Adapter
• Ethernet Cable
• Quick Start Guide
• Cradle
System Requirements Microsoft® Windows 7, 8, 8.1, 10, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux®
Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher

VIDEOS

QUANTUM T3A

Roaming & Mesh

User Manuals

FAQ

View All
How to log in HUMAX router’s setting interface?
The router’s setting interface allows you to setup basic and advanced settings for better network experience. If you want to login to HUMAX router’s setting interface to configure some settings, please follow the steps below.

Step 1
Use an Ethernet cable to connect your computer to one of the LAN ports (Orange port) at the back panel of the router.
(It is suggested to use a wired connection than wireless if you are going to change the router’s wireless settings or upgrade the firmware version of the router.)

Step 2
Open the web browser and in the address bar type enter default access IP and then press Enter.
(The default access IP of HUMAX routers is //192.168.1.1)
1_t3a_faq__1

Step 3
Type the username and password in the login page. Refer to the default login username and password at the bottom of your product.
1_t3a_faq_2

Step 4
Please check the Easy Setup page open.
1_t3a_faq_3

Note:
If you forgot ID and Password, please try again after factory default setting.
How to change Login User Name and Password?
If you want to modify the router’s user name and password for logging in the web-configuration interface, please follow the steps below.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page
2_t3a_faq_1

Step 3
Click on Management ->Change Password on the left side, then you can change the router’s username and password on this page.
2_t3a_faq_2

Step 4
Click Apply button, then you will view router status page and when you open another setting page, you can see the User Login page.

Note: Do not forget the new username and password. If you forgot them, you need to factory default setting.
What can I do if I forget the login password of router?
The default login username is “admin” and password is the 4 serial number at the bottom of your product “nnnn” as below. If you have changed the login password and you forgot, you need to reset it to factory default and configure it as a new one.

3_t3a_faq__1

Step 1.
When the device is running, press the reset button on the rear panel using a pin for 10 seconds or more.
3_t3a_faq__2

Step 2.
Release the reset button and wait for the device to reboot.

Note:
After reset to factory default, the default IP address is 192.168.1.1 and the default login username and password both are the same as above.
How to reset the current configuration to factory default?
If you can’t access the router’s setup interface or simply forgot the router’s password, you may reset the current configuration to factory default.

Step 1
Log into the router’s web interface.

Step 2

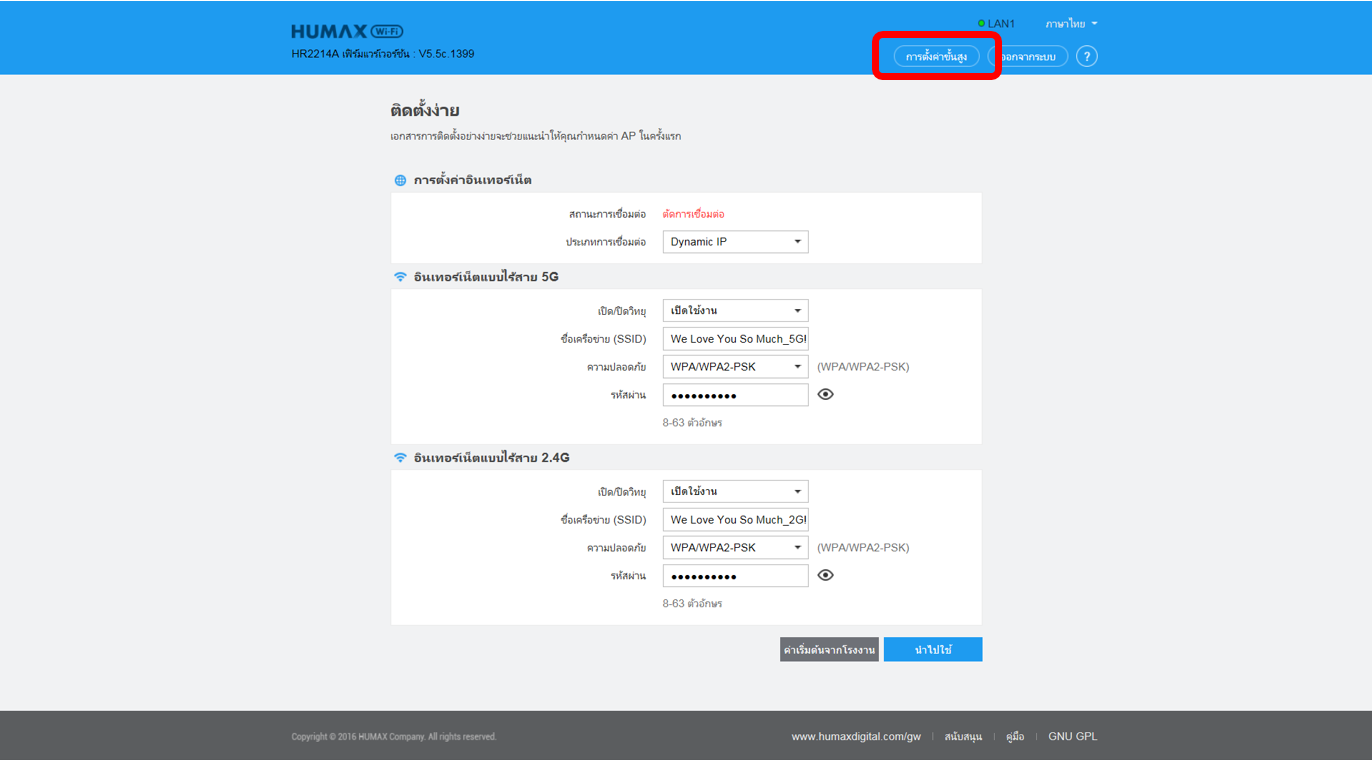

Click Advanced Setup button of the Easy Setup page
4_t3a_faq__1

Step 3
Click on Management -> System Configuration on the left side, then click Factory Default button.
4_t3a_faq__2

Step 4
Click OK and wait for few seconds to finish resetting.
4_t3a_faq__3

Note:
After reset to factory default, refer to the default login username and password at the bottom of your product.
How do I physically connect my router?
Step 1
Plug in the cable modem power adapter and check the working of cable modem.

Step 2
Connect the HUMAX Wireless Router to the modem. Plug one end of an Ethernet cable to the modem and the other end into the internet port on the router. The internet port is yellow.
5_t3a_faq__1

Step 3
Connect the router to the computer. Plug one end of an Ethernet cable into the computer Ethernet port and the other end into any one of the four LAN ports on the router.
5_t3a_faq__2

5_t3a_faq__3

Step 4
Plug in the router power adapter and check working of your Internet.
What’s MAC address clone used for and how to configure?
MAC address is the physical address of your computer’s network card. Generally, every network card has one unique Mac address. Since many ISPs only allow one computer in LAN to access Internet, users can enable MAC address clone function to make more computers surf Internet.

Step 1
Connect you PC to the router by cable or wireless.

Step 2
Log into the router’s web interface.

Step 3
Click Advanced Setup button of the Easy Setup page

Step 4
Click Network ->WAN settings -> MAC Clone button

Step 5
Click Apply
6_t3a_faq__1
How to Configure Router’s Easy Setup?
Step 1
Log into the router’s web interface.

Step 2
First, the Easy Setup page will turn up for basic and quick settings, including Internet Setting and Wireless Setting.

7_t3a_faq__1

Step 3
Choose the WAN Access Type, enter User Name, Password provided by your ISP. Set an encryption method and password for your WiFi network.

7_t3a_faq__2

Step 4
Click Apply to make the settings work.
How to change the SSID of router?
If you want to change the SSID, please follow the steps below.

Method 1
Use the Easy setup to Change.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3

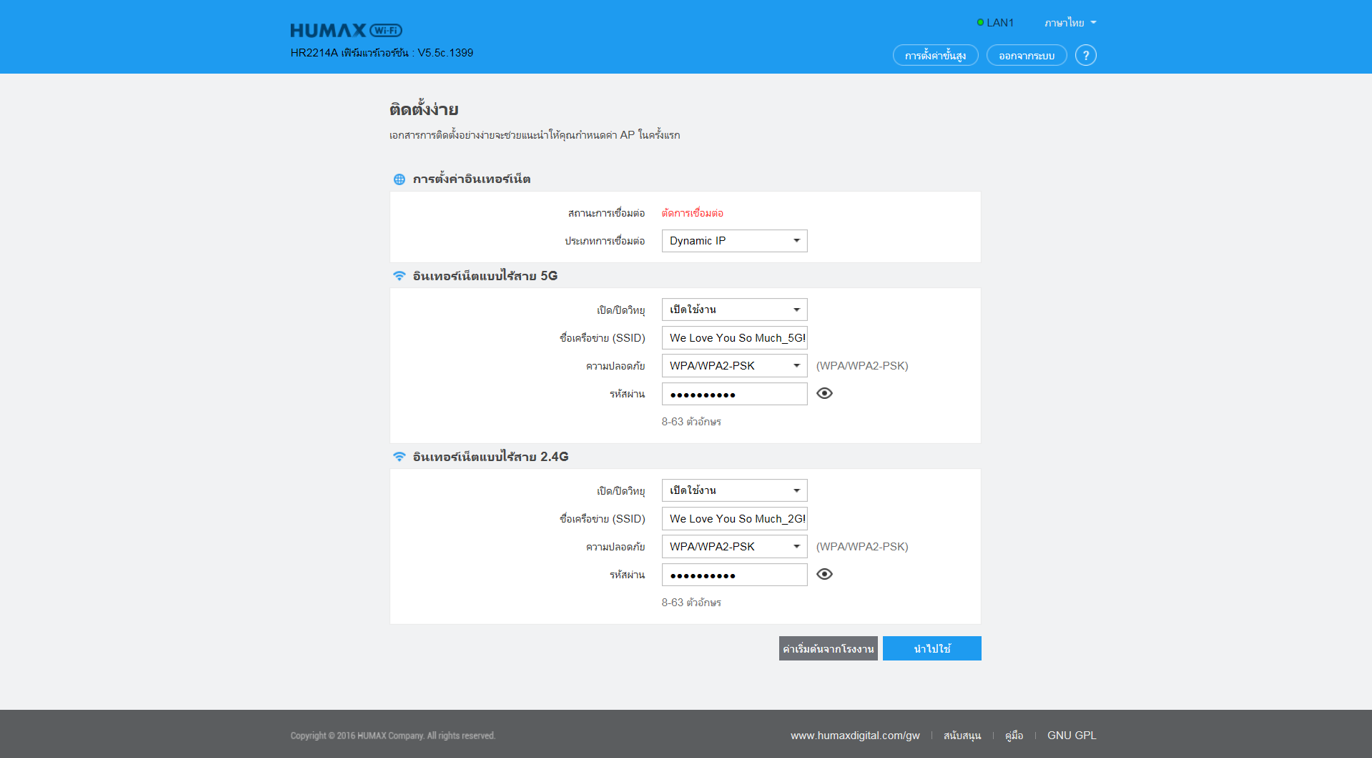

The Easy Setup page will turn up for basic and quick settings, including Internet Setting and Wireless Setting.

8_t3a_faq__1

Step 4
Choose 5G Wireless Setting or 2.4G Wireless Setting, and input the new SSID, set the password for it and click Apply. 8_t3a_faq__2
How to encrypt my wireless network?
If you want to encrypt your wireless network, please follow the below steps.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
Click Wireless 5GHz -> Basic Settings on the left side, then you can change Encryption on this page.
9_t3a_faq__1

Step 4
If you change the Encryption type and input password key, Click Apply button.

Note:
1. WEP-Open System, WEP-Shared Key, WPA-PSK, WPA2-PSK and WPA/WPA2-PSK are provided for your, for better security, WPA/WPA2-PSK is recommended.
2. The Wireless 2.4GHz setting is the same as Wireless 5GHz setting.
What to do when you can’t find the router’s WiFi signal?
When you can’t find the SSID of the router even you have powered on the router? you can check the settings following these steps.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
Click Wireless 5GHz -> Primary Network on the left side, then check if the Radio On/Off is Enable.
10_t3a_faq__1

Note:
The Wireless 2.4GHz setting is the same as Wireless 5GHz setting.
What can I do if I forget the password for WiFi connection?
Password can ensure your security of your wireless network. If you forgot the WiFi password, you cannot find it. Please follow these steps. There are two ways to.

Method 1
If you know the user ID and password for interface of router, you can change WiFi password.

Step 1
Log into the router’s web interface.

Step 2
The Easy Setup page will turn up for basic and quick settings, including Internet Setting and Wireless Setting.
11_t3a_faq__1

Step 3
Choose 5G Wireless Setting or 2.4G Wireless Setting, and set the password for it and click Apply.
11_t3a_faq__2

Note:
For better security, WPA/WPA2-PSK is recommended.

Method 2
If you do not know user ID and password, you need reset it to factory default and configure it as a new one.

Step 1.
When the device is running, press the reset button on the rear panel using a pin for 10 seconds or more.
11_t3a_faq__3

Step 2.
Release the reset button and wait for the device to reboot.

Note:
After reset to factory default, the default IP address is 192.168.1.1 and refer to the default login username and password at the bottom of your product.
How do I check the Firmware version on router?
If you want to know the firmware version of router for firmware upgrade, please follow step below.

Step 1
Log into the router’s web interface.

Step 2
Easy Setup page will turn up, then you can see the model name and firmware version.
13_t3a_faq__1
How to upgrade router’s firmware to the latest version?
New version of firmware will be released to improve the various efficiency or to fix some bugs. Following the steps show below so as to realize upgrading.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3

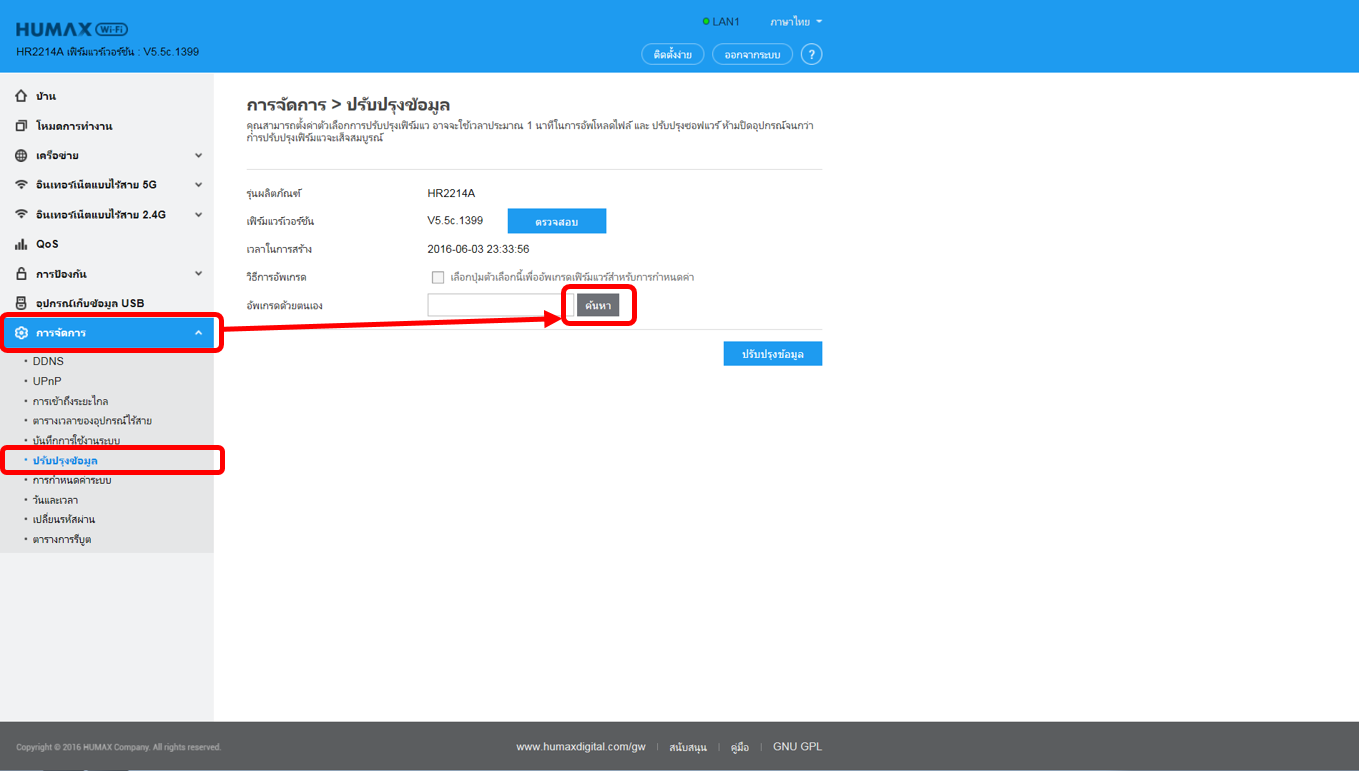

Click Management -> Update Firmware on the left side, then click Browse button.
14_t3a_faq__1

Step 4
Choose latest firmware for upgrade and click the open button.
14_t3a_faq__2

Step 5
After check the selected file, Click the Update button. After the router reboots, upgrade procedure finished.
14_t3a_faq__3

Note:
DO NOT power off the device or close the browser window during the upload because it may crash the system.
How to configure port forwarding on the router?
By port forwarding, the data for Internet applications can pass through the firewall of the router or gateway. This article will show you how to forward ports on your router.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
1. Click Firewall -> Port Forwarding on the left side.
2. Change the Port Forwarding Disable/Enable to Enable.
3. Select Protocol Type.
4. Type the IP Address of your device that you want to open the port.
5. Type the Internal Port which you want to open.
6. The Remote IP Address you can put in the blank.
7. Click the Apply button.

15_t3a_faq__1

Step 4
Check the current Port Forwarding Table you typed.
15_t3a_faq__2

Note:
Since the Forwarding rules are related to IP Address of the device, it is suggested to set up a static IP for your device that needs to open the ports.
How to configure DDNS on the router?
DDNS (Dynamic Domain Name Server) is to achieve a fixed domain name to dynamic IP resolution. In this way, most users don’t need to use fixed IP and can also name the fixed network system.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
1. Click Management -> DDNS Setting on the left side
2. Change the DDNS Disable/Enable to Enable.
3. Enter the DDNS Service Provider, Domain name, User Name/Email and password key in the blank space.
4. Click the Apply button.
16_t3a_faq__1
How to configure QoS on the router?
If you want to configure QoS, please follow step below.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
Easy Setup page will turn up, then click Advanced Setup button.

Step 4
1. Click QoS on the left side.
2. Change the QoS On/Off to Enable.
17_t3a_faq__1

Step 5
1. Click Scan to find IP address.
17_t3a_faq__2

Step 6
After you select the desired IP, click the OK button.
17_t3a_faq__3

Step 7
Input Connection limit and Comment
17_t3a_faq__4

Step 8
You can check the status.
17_t3a_faq__5
How to configure remote access?
The Remote Management feature allows you to manage the gateway from a remote location, via the Internet. This article will show you how to configure remote management on your router.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
1. Click Management and Remote Access on the left side.
2. Change On/Off to Enable.
3. Type Port ( Default is 80 )
4. Click Apply.
18_t3a_faq__1
How to select Operation Mode?
HUMAX routers have multiple operation modes, such as Router Mode, Bride Mode and Repeater Mode. Here are tips to configure each mode. The default is Router Mode.

[ Bridge Mode ]

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
1. Click Operation mode
2. Select Bridge Mode
3. Click Apply
19_t3a_faq__1

[ Repeater Mode ]

Step 1~2
The same as above.

Step 3
1. Click Repeater Mode
2. Select 2.4G or 5G
3. Click Apply
19_t3a_faq__2

Step 4
Click Scan to search Network to access.
19_t3a_faq__3

Step 5
Select one of the Network and click OK.
19_t3a_faq__4

Step 6
Click Connect.
19_t3a_faq__5
How to configure multiple AP’s
Multiple APs function allows users to create network name for clients or friends accordingly.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
1. Click Wireless 5GHz and Guest Network on the left side.
2. Type Network Name.
3. Change Security to WPA/WPA2-PSK and select Hide SSID if you want.
4. Type password and click Add.
20_t3a_faq__1

Step 4
You can find out the list and add the network up to 2.
20_t3a_faq__2
How to configure FTP Service?
File server can be built quickly and easily via the USB port applications so that file upload and download can be more flexible. This guide introduces how to configure FTP service via the router.

Please make sure that USB flash disk or hard drives are plugged it into the USB port of the router before the steps.

Step 1
Log into the router’s web interface.

Step 2
Click Advanced Setup button of the Easy Setup page.

Step 3
1. Check if USB light is turned on the top right side.
2. Click USB Storage.
3. Change On/Off to Enable on FTP Sever menu.
4. Type User Name and Password.
5. Click Apply.

21_t3a_faq__1

Step 4
Type ftp://192.168.1.1 in the address bar of My Computer or the web browser.
21_t3a_faq__2

Step 5
Type User name and Password that you have set before and click Log On.
21_t3a_faq__3

Step 6
You can access data on the USB stick or storage disk.
21_t3a_faq__4
How to do reset?
If you have changed the login password and you forgot the password, you need to reset it to factory default.

Step 1.

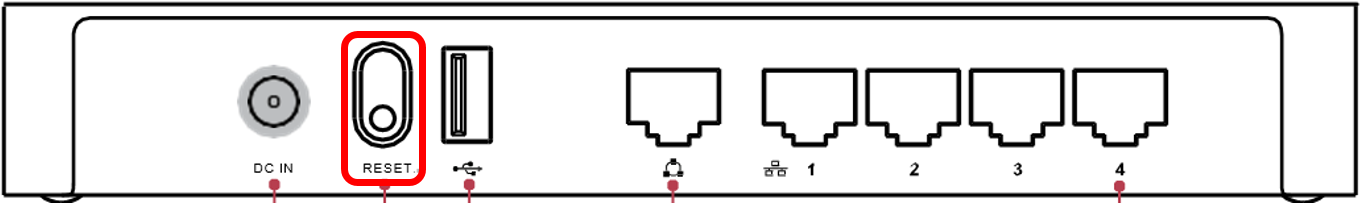

When the device is running, press the reset button on the rear panel for 10 seconds or more.

22_t3a_faq__1

Step 2.
Release the reset button and wait for the device to reboot.

Note:
After reset to factory default, the default login username is “admin” and password is the 4 serial number at the bottom of your product “nnnn”.
